Dental Surgical Instruments
An essential adjunct for Guided Bone Regeneration (GBR), designed to rigidly stabilize barrier membranes and graft materials within the defect site.
102.0002 Straight
102.0005 Curved
Non-slip design for a comfortable grip.
The anti-dislocation structure at the working end helps hold the pin more securely.
102.2601
Tapered extension design for easier access to the bottom of the pin head.
3 mm — 102.0704
5 mm — 102.0706
The tapered body design helps facilitate force application and reduce the risk of dislocation.
Pin material: Titanium alloy with excellent biocompatibility.
102.5910
Use the tip of the pin guide to prepare the pin channel in the intended application area.

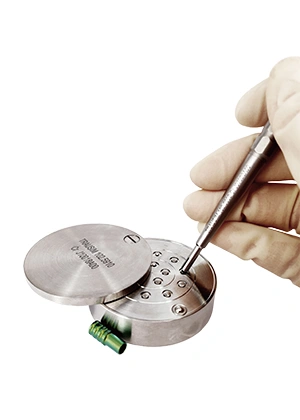

Before the procedure, select the appropriate pin size and quantity, and place the pins into the pin box for high-temperature, high-pressure sterilization. During use, hold the handle of the pin holder with four fingers, place your thumb at the end of the pin holder, and press vertically at a 90-degree angle onto the selected pin position to pick up the pin securely.
The pin is picked up and held by the pin holder.
Insert the pin into the prepared channel, press it firmly into place, then tilt the pin holder sideways and remove it.
Use the flat working end of the pin guide to remove the pins.
