Request a Quote

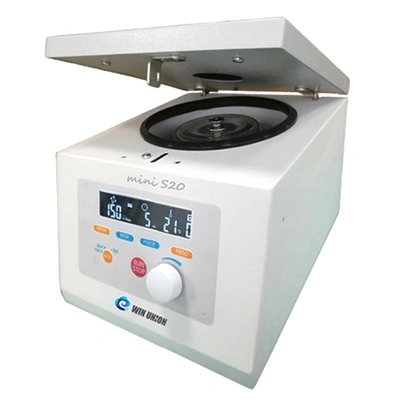

Mini S20
High-Speed Mini Centrifuge
(15,500 rpm / 0.5 ml × 18, 1.5 ml / 2 ml × 12)
Powerful and Smart
- 15,500 rpm / 16,100 × g
- Compact design
- Suitable for limited workspace
- Ideal for scientific workstations
- Plastic rotor
accelerates to full speed in 9 seconds

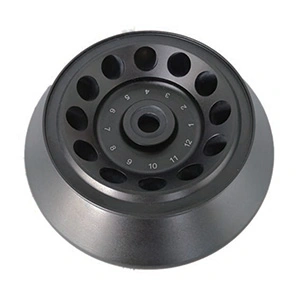

- Aluminum alloy rotor
autoclavable
A Wise Choice
- Affordable and durable to help control your budget
- Suitable for the separation of DNA, RNA, and proteins
- An ideal choice for clinical laboratories, research institutes, colleges, and universities
Advantages
- Low operating noise of 55 dB
- High-precision PID algorithm with stable speed accuracy of ±10 rpm
- Instant spin function with a momentary spin button
MSM Mode
- The unique MSM separation method is especially suitable for sensitive samples.
Specification
| Parameter | Details |
| Speed Range | 300–15,500 rpm, increment: 100 rpm |
| Speed Accuracy | ±20 rpm |
| RCF Range | 10–16,100 × g, increment: 100 × g |
| Timer | 10 sec–99 min, hold |
| Program Number | 9 |
| Preloaded Programs | MSM / Pulse / Deceleration Curve |
| DECEL Function | Three deceleration curves for better separation |
| MSM Function | Especially suitable for sensitive samples |
| Safety Devices | Door interlock, overspeed detector, overtemperature protection |
| Power Requirements | Single-phase, 110V–240V, 50Hz / 60Hz, 5A |
| Dimensions (cm) & Weight | (W) 20 × (D) 25 × (H) 17, 6 kg |
Rotors (Customization service available)
A12-2P (plastic rotor with transparent lid)
A12-2 (aluminum rotor with transparent cover)

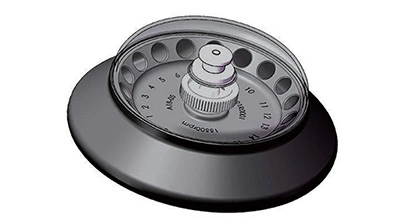

A18-05 (aluminum rotor with transparent lid)
| Rotor | Capacity | Adaptor | Max Speed | Max RCF |
| 2 ml / 1.5 ml × 12 | / | 15,500 rpm | 16,100 × g | |
| 2 ml / 1.5 ml × 12 | / | |||
| 0.5 ml × 18 | / | 15,900 × g |
Warranty
- Whole machine: 2-year warranty
- Rotor: 7-year warranty
