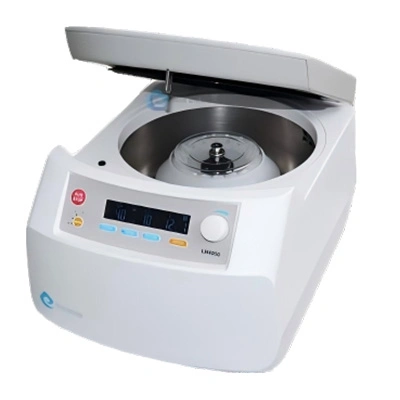

LH4050
High-Speed Lab Centrifuge
- Speed Range: 300–4500 rpm, step: 10 rpm
- Speed Accuracy: ±20 rpm
- Max RCF: 2500 × g, step: 10 × g
Request a Quote
MSM Running Method
- Gentle acceleration and deceleration help reduce cell shear damage.
- Stable low-speed operation supports better separation performance.
Features
- Compliant with international standards including CE, cTUVus, FCC, and IVD, with reliable quality
- Two-in-one design supporting both low-speed 50 ml rotors and high-speed 2 ml rotors
- Multiple rotor options, with eight rotors available
- Wide voltage design keeps speed stable under voltage fluctuations
- Four deceleration levels for better separation performance
- Supports 1–9 custom programs for simple and efficient operation
- The unique MSM separation method is especially suitable for sensitive cells
Specification
| Parameter | Details |
| Speed Range | 300–15000 rpm, step: 100 rpm |
| RCF Range | 100–16400 × g, step: 100 × g |
| Speed Accuracy | ±20 rpm |
| Timer | 10 sec–99 min, continuous |
| MSM Mode | More Stable Mode with gentler acceleration and deceleration |
| Program Number | 9 |
| Deceleration | 4 levels |
| Safety Devices | Door interlock, overspeed detector, overtemperature protection |
| Power Requirements | Single-phase, 110V–240V, 50Hz / 60Hz, 3A |
| Dimensions (cm) & Weight | (W) 29.2 × (D) 40.5 × (H) 22.6, 9 kg |
| Additional Features | Speed/RCF switch, process display, voice reminder |
Rotor Specification
A6-50P
A12-15P

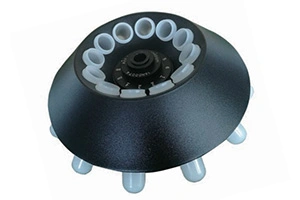

A12-10E
A24-2P
A12-5VP
A12-2P
A4-PCR8
A18-2P
| No. | Rotor | Max Speed / RCF | Capacity |
| 1# | | 4500 rpm / 2500 × g | 50 ml × 6 or 15 ml × 6 |
| 2# | | 4500 rpm / 2500 × g | 15 ml × 12 |
| 3# | | 4500 rpm / 2500 × g | 10 ml × 12 or 15 ml × 6 |
| 4# | | 12000 rpm / 13710 × g | 2 ml × 24 |
| 5# | | 11000 rpm / 11500 × g | 5 ml × 12 |
| 6# | | 15000 rpm / 15100 × g | 2 ml × 12 |
| 7# | | 11500 rpm / 12600 × g | 4-PCR8 |
| 8# | | 14000 rpm / 16400 × g | 1.5 ml × 18 or 2 ml × 18 |
| No. | Model | Application Area | Parameters |
| 1 | | Medical | 10 ml × 12, 4500 rpm / 2500 × g |
| 2 | | Beauty Medical | 10 ml × 12, 4500 rpm / 2500 × g |
| 3 | | Dental Implant | 10 ml × 12, 4500 rpm / 2500 × g |
| 4 | | Laboratory | 50 ml × 6, 15 ml × 8, 10 ml × 12, 4500 rpm / 2500 × g |
| 5 | | Laboratory | 50 ml × 6, 4500 rpm; 2 ml × 24, 12000 rpm |
After-Sales Policy
- The whole machine is covered by a 2-year warranty, and the rotor is covered by a 7-year warranty.
- To ensure safe and efficient centrifuge operation, regular maintenance is recommended.
