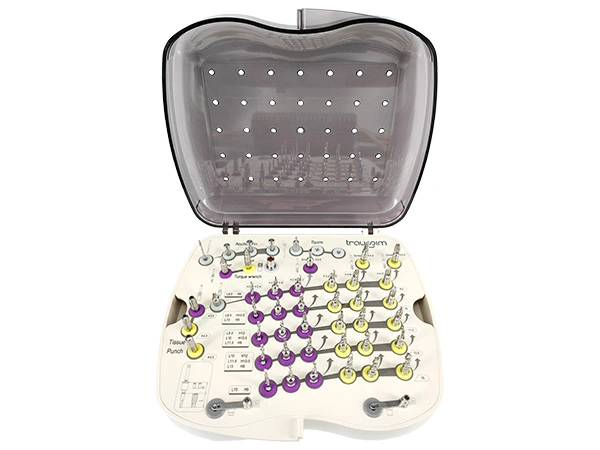

NT Implant Guided Surgical Kit
The NT implant guided surgical kit is an auxiliary tool used for precise positioning in digital implant surgery, helping achieve minimally invasive, safe, and predictable surgical outcomes.
Request a Quote
Function of the Kit
As the physical carrier of the guided surgery system, the kit includes drills with different diameters and lengths to ensure that the osteotomy size matches the implant precisely. For this reason, the NT implant guided surgical kit is designed specifically for the Trausim NT implant system.
Indications
It is especially suitable for complex cases such as multiple implant placement, full-arch restorations, limited bone volume, and immediate restoration.
Advantages
- Preoperative planning
Based on CBCT data, the implant position can be simulated on the computer to avoid nerves and blood vessels while optimizing occlusion.
- Intraoperative guidance
The drill sleeve precisely controls direction and depth. Flapless surgery is possible, which helps reduce trauma as well as postoperative pain and swelling.
- Improved efficiency
Helps shorten surgical time, reduces dependence on operator experience, and allows one-step osteotomy preparation while preserving bone volume.
Kit Contents
Positioning Pin
|
Product Code |
Specification |
| 110.0015 |
Ø1.5mm |
Fix Pin
|
Product Code |
Specification |
| 122.1015 |
Ø1.5mm |
Tissue Punch
|
Product Code |
Specification |
| 122.0735 |
Ø3.5mm |
| 122.0743 |
Ø4.3mm |
| 122.0750 |
Ø5.0mm |
Milling Drill
|
Product Code |
Specification |
| 122.0028 |
Ø2.8mm |
Pilot Drill
|
Product Code |
Specification |
| 122.1020 |
Ø2.0mm |
Guider
|
Product Code |
Specification |
| 122.0206 |
L=6mm |
| 122.0208 |
L=8mm |
Step Twist Drill
|
Product Code |
Specification |
| 122.1124 |
Ø2.0/2.4mm L=8.5mm |
| 122.1224 |
Ø2.0/2.4mm L=10.0mm |
| 122.1324 |
Ø2.0/2.4mm L=11.5mm |
| 122.1424 |
Ø2.0/2.4mm L=13.0mm |
| 122.1524 |
Ø2.0/2.4mm L=15.0mm |
Step Twist Drill
|
Product Code |
Specification |
| 122.1128 |
Ø2.4/2.8mm L=8.5mm |
| 122.1228 |
Ø2.4/2.8mm L=10.0mm |
| 122.1328 |
Ø2.4/2.8mm L=11.5mm |
| 122.1428 |
Ø2.4/2.8mm L=13.0mm |
| 122.1528 |
Ø2.4/2.8mm L=15.0mm |
Step Twist Drill
|
Product Code |
Specification |
| 122.1132 |
Ø2.8/3.2mm L=8.5mm |
| 122.1232 |
Ø2.8/3.2mm L=10.0mm |
| 122.1332 |
Ø2.8/3.2mm L=11.5mm |
| 122.1432 |
Ø2.8/3.2mm L=13.0mm |
| 122.1532 |
Ø2.8/3.2mm L=15.0mm |
Step Twist Drill
|
Product Code |
Specification |
| 122.1136 |
Ø3.2/3.6mm L=8.5mm |
| 122.1236 |
Ø3.2/3.6mm L=10.0mm |
| 122.1336 |
Ø3.2/3.6mm L=11.5mm |
| 122.1436 |
Ø3.2/3.6mm L=13.0mm |
| 122.1536 |
Ø3.2/3.6mm L=15.0mm |
