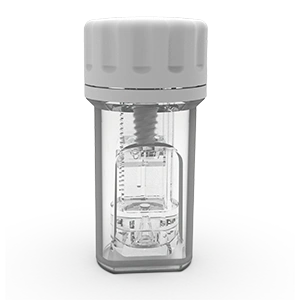

NT Dental Implant System

Choice of immediacy

Certificate: NMPA certificate, FDA 510(k), CE, and ISO 13485 certification.

Watch Video

(Internal Hex Connection, 12° Morse Taper) Dental Implants, Cover Screws, and Surgical Kits

Designed for demanding clinical situations, Trausim NT dental implant system ensures high primary stability even in soft bone, extraction sites, or the aesthetic area. It empowers clinicians to confidently perform immediate implant placement and immediate function procedures where precision is critical.

Request a Quote
Download Center

NT Dental Implant

Design Features

Platform

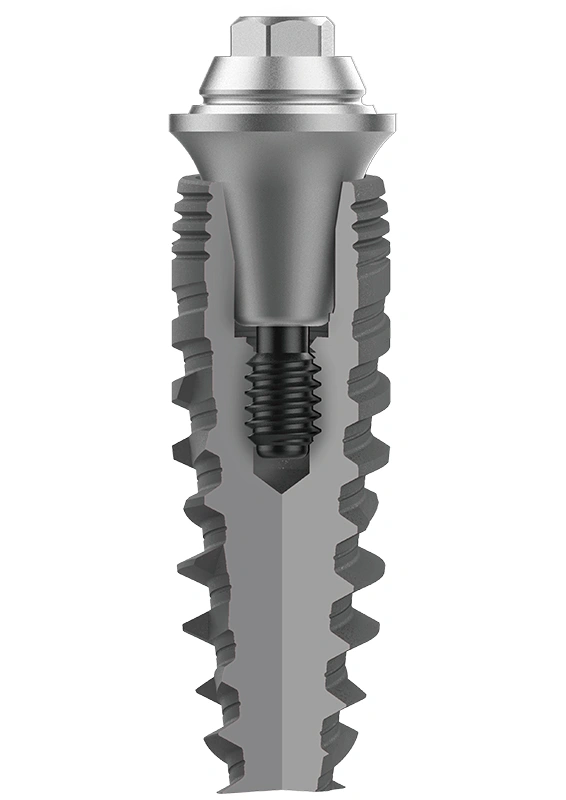

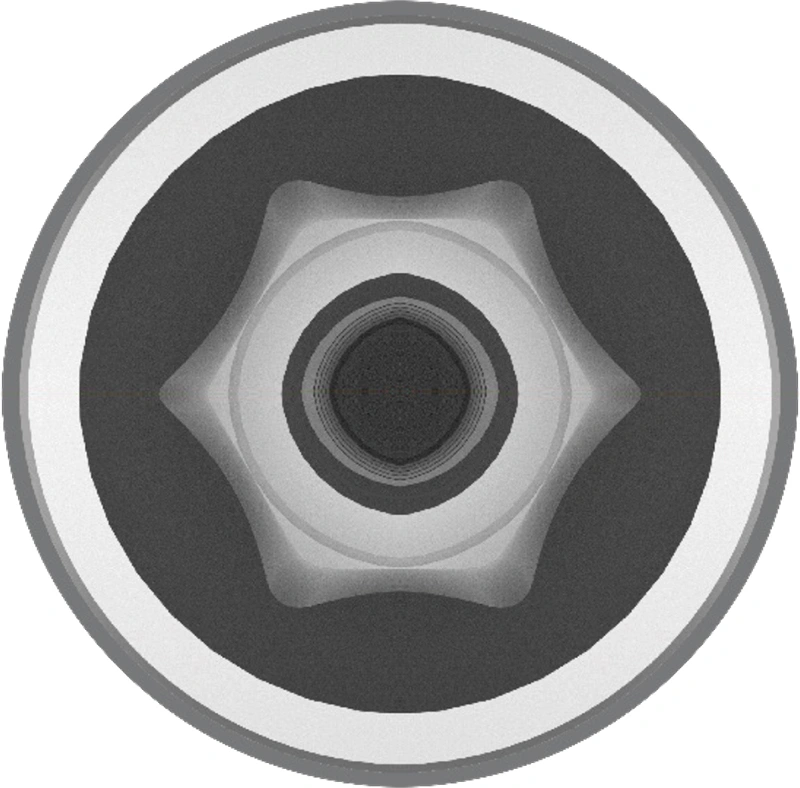

Internal hex connection, 12° Morse taper, and platform-switching design.

Shape
Aggressive tapered design for maximized primary stability and immediate application.

Material

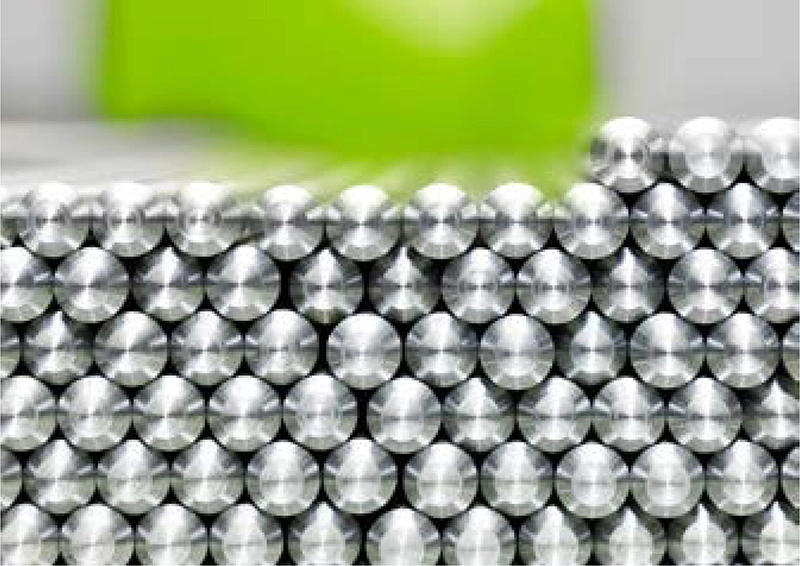

Cold-drawn Titanium Grade 4 sourced from Germany’s ZAPP Group, with maximum strength exceeding 900 MPa.

Surface
Advanced SLA surface treatment.

Large-Grit Sandblasted and Acid-Etched Surface

Multi-level microporous structure

Healing time: 6–8 weeks

Cell pseudopodia attachment

Implant Specifications

NP Dental Implant, Ø 3.5mm

Diameter	Length	Platform	Product Code
3.5 mm	8.5 mm	NP (Narrow Platform)	050.3508
	10 mm		050.3510
	11.5 mm		050.3511
	13 mm		050.3513
	15 mm		050.3515

RP Implant System, Ø 4.3mm

Diameter	Length	Platform	Product Code
4.3 mm	8.5 mm	RP (Regular Platform)	050.4308
	10 mm		050.4310
	11.5 mm		050.4311
	13 mm		050.4313
	15 mm		050.4315

RP Implant System, Ø 5.0mm

Diameter	Length	Platform	Product Code
5.0 mm	8.5 mm	RP (Regular Platform)	050.5008
	10 mm		050.5010
	11.5 mm		050.5011
	13 mm		050.5013

NT Implant Cover Screw

NP	RP
051.1310	051.2310

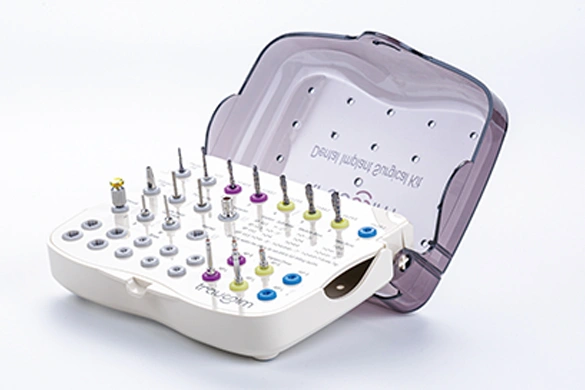

NT Dental Implant Surgical Kit

Download Center

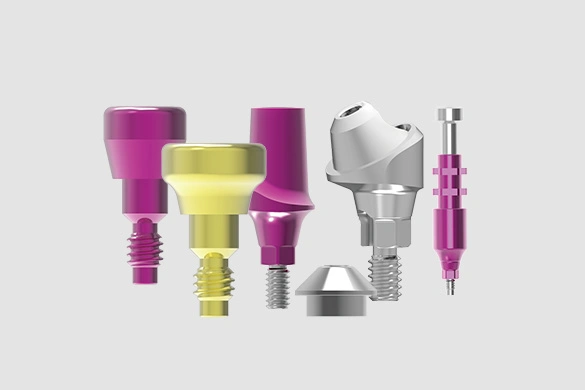

NT Dental Prosthetic Components

Healing Caps, Dental Abutments, Impression Copings, Implant Analogs

New era of restorative concept.
Rooted in Science. Engineered for Harmony.
Achieving harmony at every phase. From healing to final restoration, our slim, concave emergence profile and inner hex conical connection create the optimal environment that tissue truly deserves.
