Certificate: NMPA certificate; FDA 510(K), CE ISO 13485.

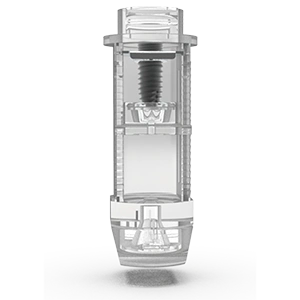

BLE Dental Implant System

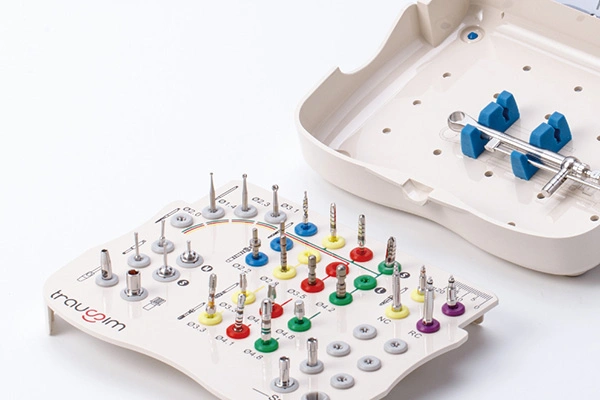

(Cross-Fit Connection, Morse Taper 15°) Dental Implant, Cover Screw, Implant Surgical KitBuilding on the validated performance of the Bone Level Implant series, Trausim BLE implant incorporates a tapered design to enhance clinical outcomes. This configuration ensures superior primary stability in challenging scenarios, such as soft bone and fresh extraction sites. The tapered geometry facilitates effective compaction of the osteotomy site while adeptly navigating complex anatomical limitations, including buccal undercuts, convergent roots, concave ridges, or narrow alveolar crests.
-
Request a Quote

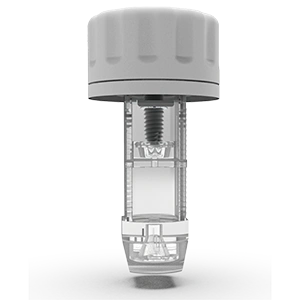

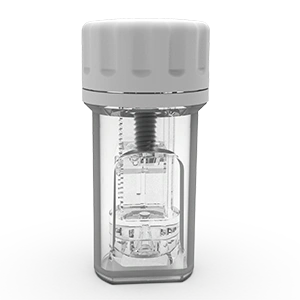

BLE Dental Implant

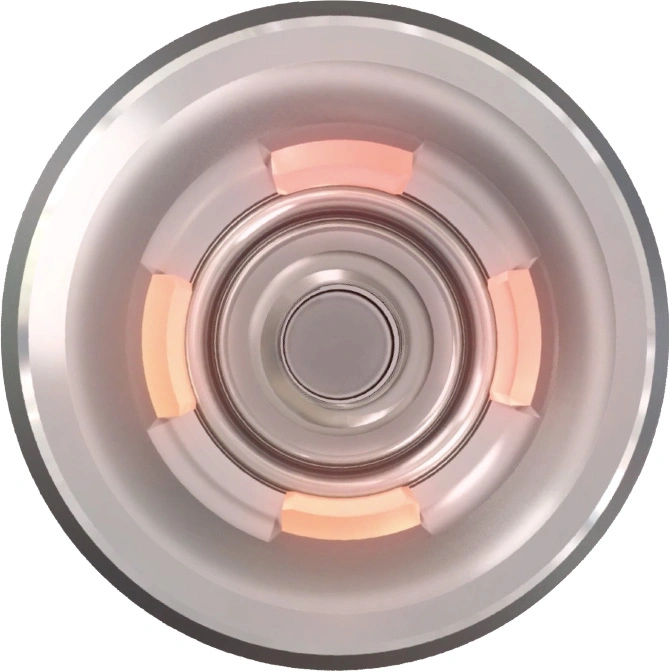

- Platform
Cross-Fit connection, 15° Morse taper, and platform-switching design.
The system offers easier operation, a precise seating pathway, and helps effectively reduce the risk of false seating.

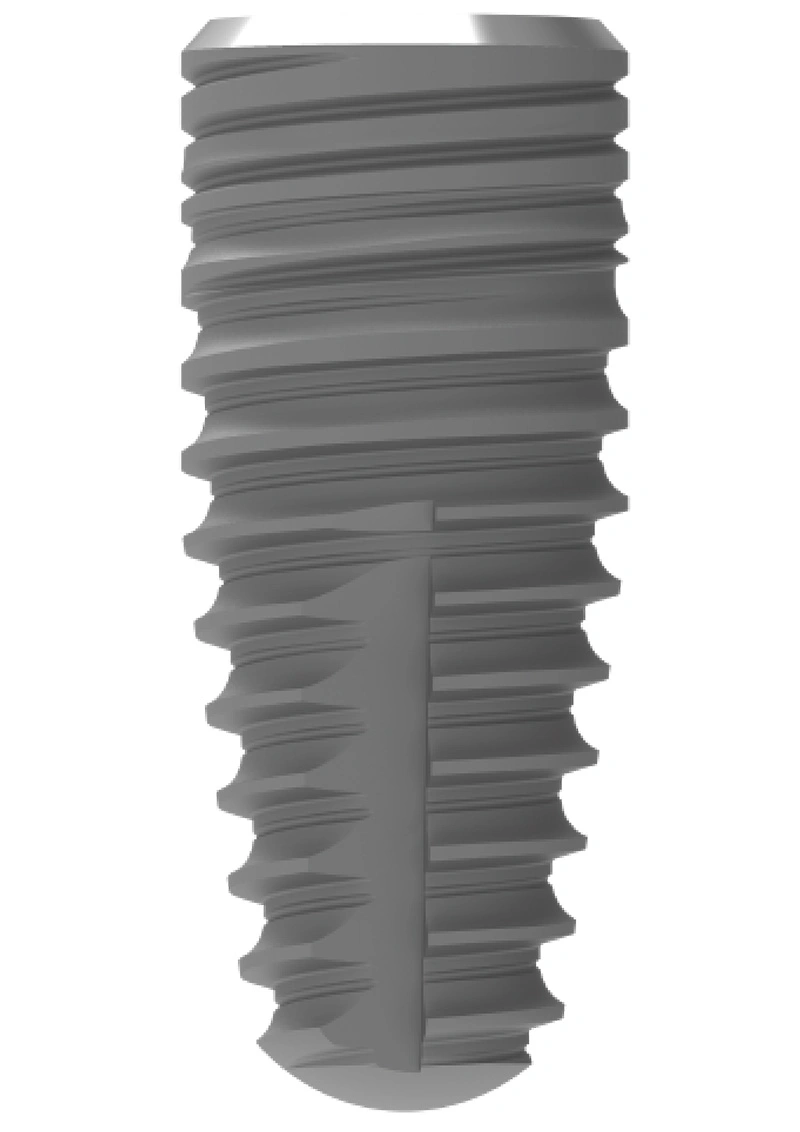

- Shape
Half-tapered body design for high primary stability, suitable for a wide range of restorative applications.

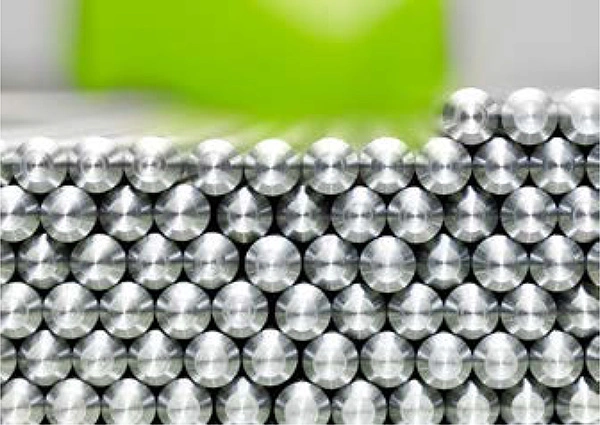

- Material
Cold-drawn Titanium Grade 4 sourced from Germany’s ZAPP Group, with maximum strength exceeding 900 MPa. The same diameter can withstand greater occlusal force.

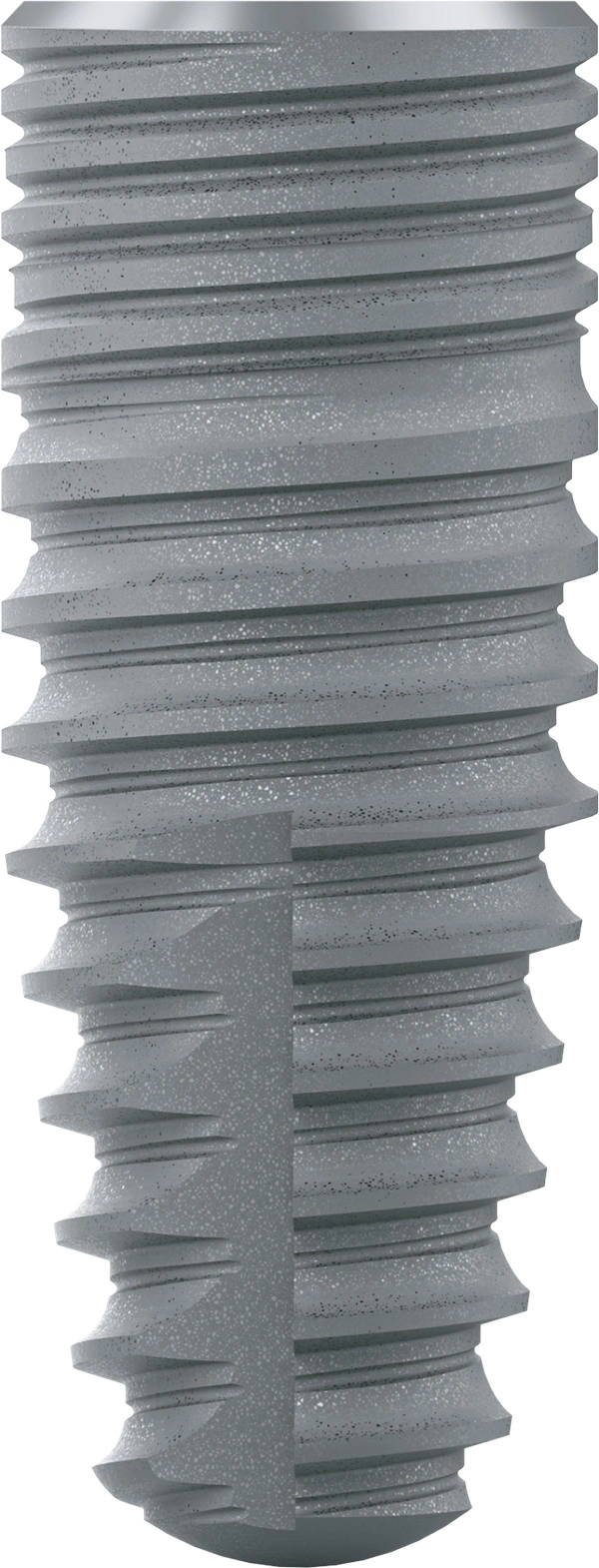

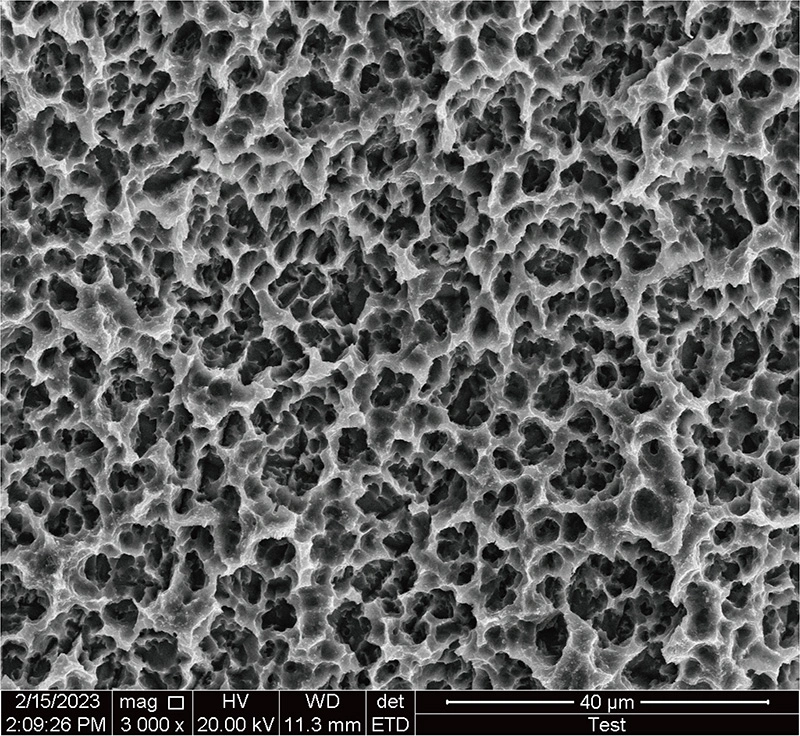

- Surface
Advanced SLA surface treatment. SLA (large-grit sandblasting and acid etching) supports fast and stable osseointegration. The ultra-clean surface helps osteoblasts attach effectively to the implant surface.

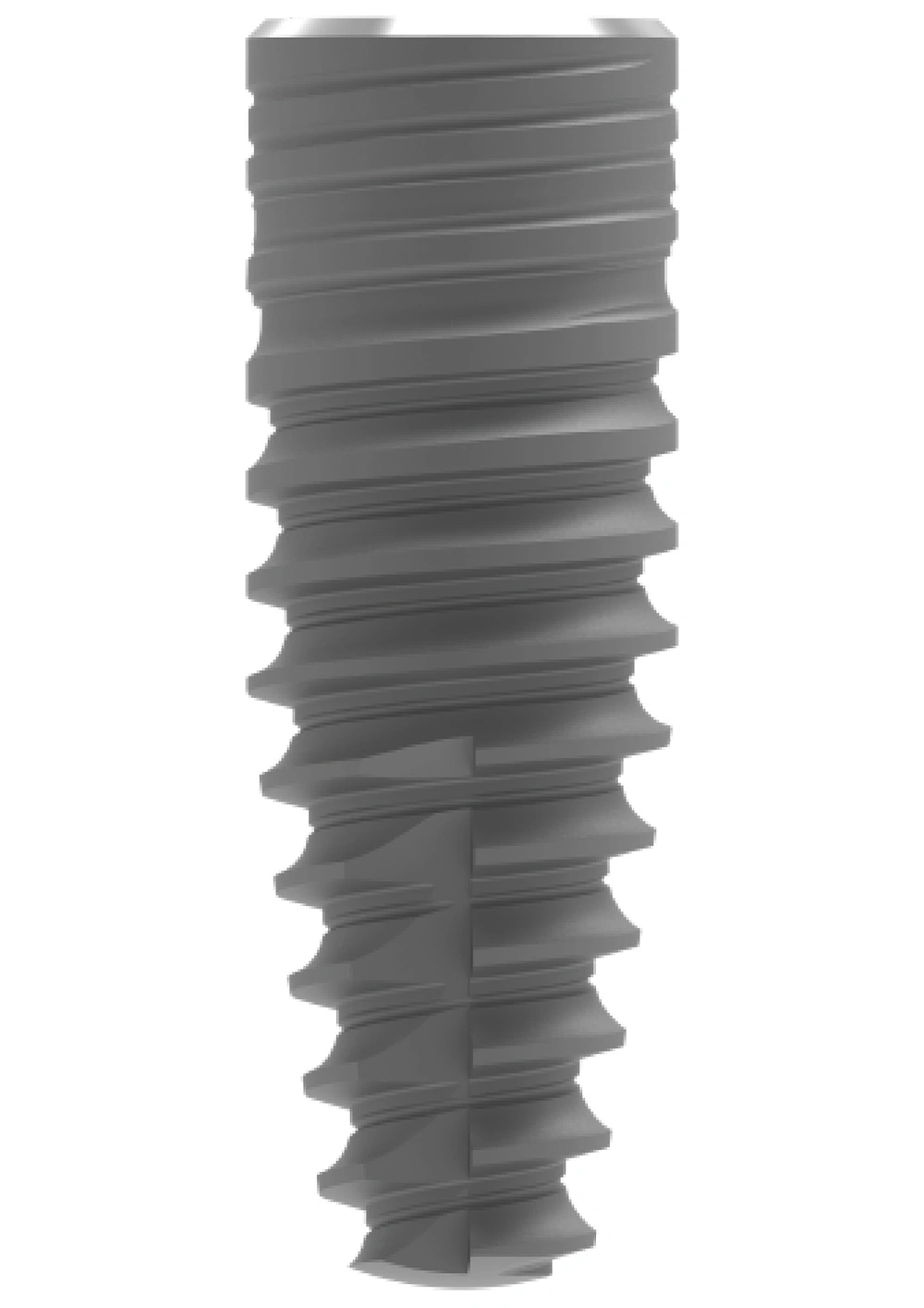

Bone Level Implant, Ø 3.3mm NC
 | Diameter | Length | Platform | Product Code |
| 3.3 mm | 8mm | NC (Narrow CorssFit) | 030.3308 | |
| 10mm | 030.3310 | |||
| 12mm | 030.3312 | |||
| 14mm | 030.3314 |

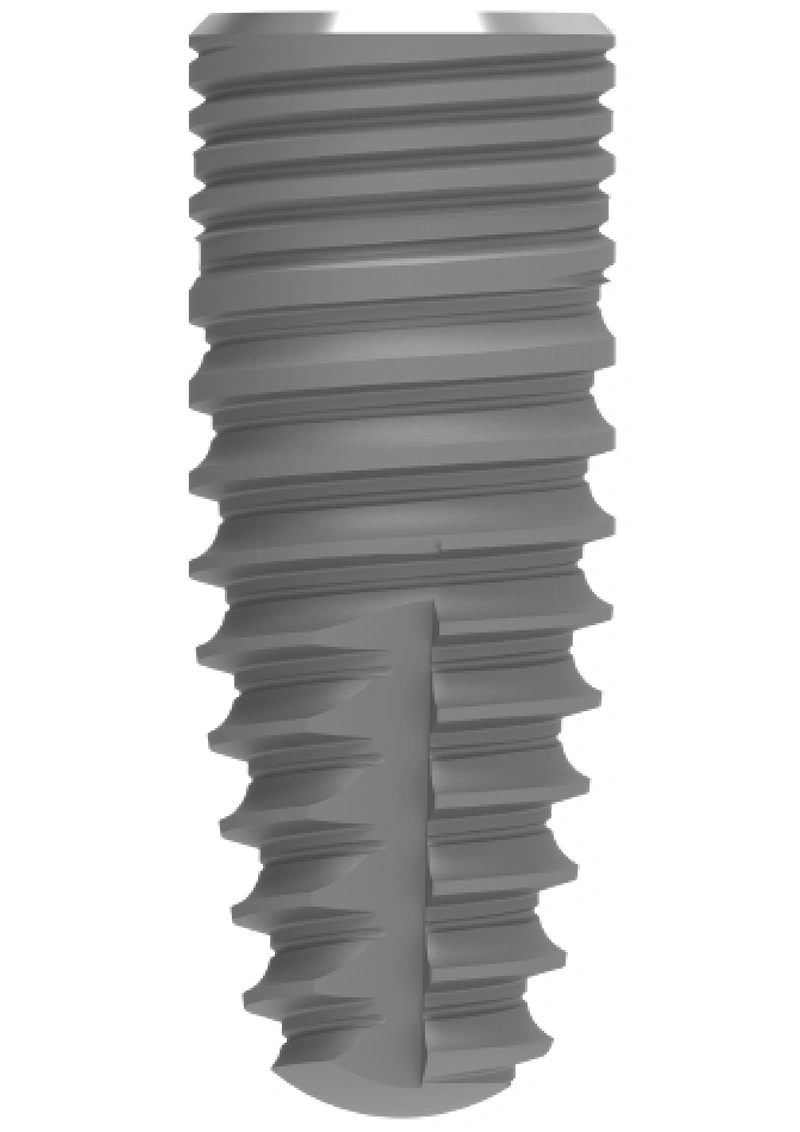

Bone Level Implant, Ø 4.1mm NC
 | Diameter | Length | Platform | Product Code |
| 4.1 mm | 8mm | RC (Regular CrossFit) | 030.4108 | |
| 10mm | 030.4110 | |||
| 12 mm | 030.4112 | |||
| 14mm | 030.4114 |
Bone Level Implant, Ø 4.8mm RC
 | Diameter | Length | Platform | Product Code |
| 4.8 mm | 8mm | RC (Regular CrossFit) | 030.4808 | |
| 10 mm | 030.4810 | |||
| 12mm | 030.4812 | |||
| 14mm | 030.4814 |
BLE Closure Screw/Cover Screw
| Product Code | Diameter (mm) | H (mm) | ||
| NC |  | 2.8 | 0.0 | |
 | | 3.1 | 0.5 | |
| Product Code | Diameter (mm) | H (mm) | ||
| RC |  | | 3.3 | 0.0 |
 | | 3.6 | 0.5 | |

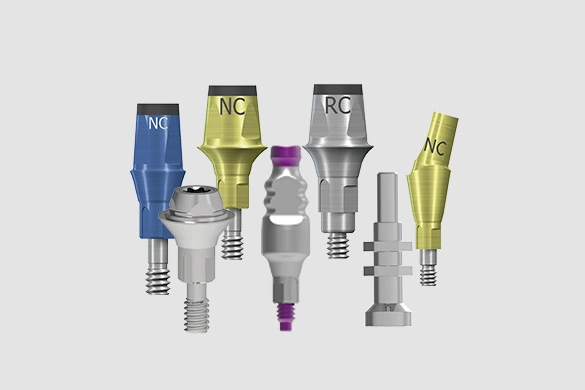

BLE Dental Prosthetic Components
Healing Cap, Dental Abutment, Impression Coping, Implant AnalogFeaturing the reliable CrossFit connection, Trausim BLE accessories deliver unmatched rotational stability and long-term durability. Thanks to pre-fabricated components, every piece fits perfectly. Clinicians can easily verify the precise fit of the impression coping thanks to its unmistakably clear feedback.
